Description

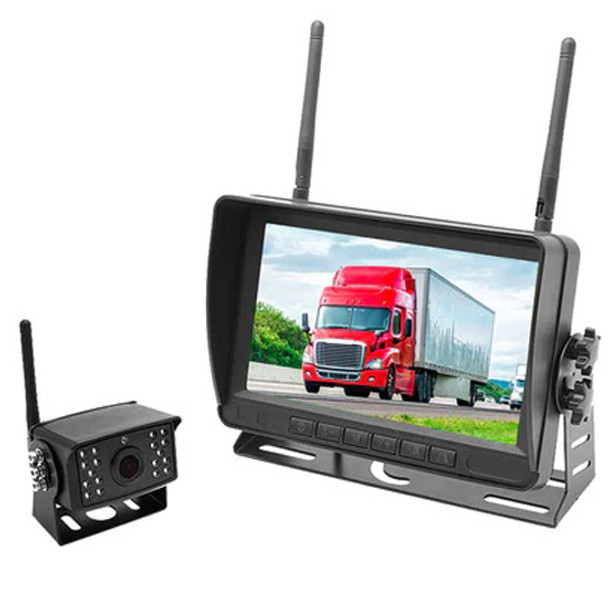

2nd Gen Wireless Back Up Camera W/ 7 Inch LCD Screen- 200-300 Ft Range
- Back Up Camera System
- Includes:
- Sun Shield For Monitor
- Suction Cup Windshield Mount
- Digital 7 LCD Monitor With Built-In Digital Receiver
- (1) Digital Wireless LCD Antennas
- (1) Digital Wireless Heavy Duty Bracket Cameras
- Power Cable For Monitor Installation
- Remote Control For LCD Monitor
- Instructional Manual
- CCD Camera/Transmitter Specifications:
- Imaging Sensor: CCD
- CCD Resolution: 420 TV Lines (Pal & NTSC)
- Minimum Illumination: 0 LUX
- Transmission Frequency: ISM Digital
- Transmission Power: 10MW/CE; 2MW/FCC
- Modulation Type: FM
- IR Night Range: 30 To 50 Ft
- Bandwidth: 18 MHz
- Waterproof: IP68
- Power Supply: + 12V Or 24V DC
- Consumption Current (Max.): 230MA
- Horizontal View Angle: 130 Degrees
- Unobstructed Effective Range: 100M [Min.]
- Dimensions: 3.75W X 2D X 2.5H Inch (Excluding Bracket)
- Weight: 15.5 Oz
- Operating Temperature: -30 F/150 F
- Operating Humidity: 85% RH
- Monitor/Receiver Specifications:
- LCD Resolution: 800 X 480
- Receiving Frequency: ISM Digital
- Intermediate Frequency: 480 MHz
- Demodulation Type: FM
- Antenna: 50 OHM SMA
- Receiving Sensitivity: <= -85 DBM
- Video Output Signal Level: 1 .1 V +/- 0.2V~ @75OHM, S/N>38DB
- Power Supply: + 12/36 V DC
- Consumption Current (Max.): 600MA
- Unobstructed Effective Range: 100 (Min.)
- Dimensions: 8.5W X 1D X 6H Inch
- Weight: 14 Oz (Excluding Bracket)
- Operating Temperature: -10 C/+50 C Or+14 F/122 F
- Operating Humidity: 85% RH
- Sold Individually
- Warranty On Back Up Camera Systems Against Defects In Workmanship & Material From Date Of Purchase
- Aftermarket Replacement Part (Not OEM)
- ATTN: Customer/Installer Protect Your Purchase By Properly Registering Your Product With The Manufacturer. All Electronic Items That Specify A Warranty Period Are Handled By The Manufacturer Directly. 4 State Trucks Will Assist You By Getting The Contact Information For A Vendor If Needed, But Cannot Submit Any Claims For You. It Is Important To Fill Out All Required Warranty Information Within A Short Time Frame As Some Manufacturers Warranties Are Void If The Proper Information Is Not Submitted.
- This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
