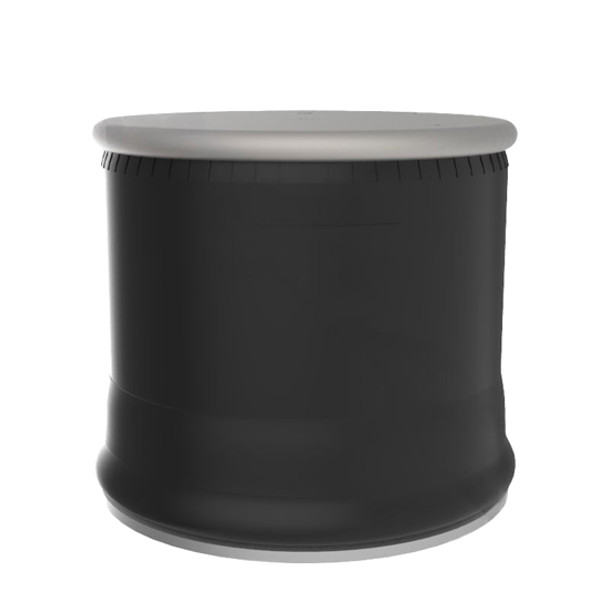

Raven Suspension Air Spring Rolling Lobe Replaces 9204, 64429

SKU:
29-05100275
UPC:
889626212253
Condition:
New
Availability:
Usually ships in 5 days
Shipping:
Calculated at Checkout
$344.99
Frequently bought together:

Description

Rolling Lobe Air Spring W/ 5 Top Plate Holes & 4 Bottom Plate Holes Fits Raven Suspension


 - Air Spring
 - Automann Phoenix Brand
 - Rolling Lobe
 - Load At 80 PSI - 8000 Lbs
 - Load At 100 PSI - 10,000 Lbs
 - Natural Frequency 88 CPM (Cycles Per Minute)
 - Rotate Piston 45 Degrees
 - Includes:
  - (5) Top Plate Holes
  - (4) Bottom Plate Holes
 - Internal Bumper
 - Resistant To Oil, Lubricants, And Adverse Weather Conditions
 - Mounting Brackets Not Included
 - Aluminum Base
 - 10.00 Inch Design Height
 - Top Plate
  - 11.31 Inch Outer Diameter
  - 6.25 Inch Center To Center Diameter
 - Bottom Plate
  - 11.50 Inch Outer Diameter
  - 7.87 Inch Center To Center Diameter
  - 5.70 Inch Minimum Height
  - 18.00 Inch Maximum Height
  - 13.80 Inch Maximum Diameter
 - Sold Individually

 - Aftermarket Replacement Part (Not OEM)

 - Cross Ref Numbers 9204, 64429
