Description

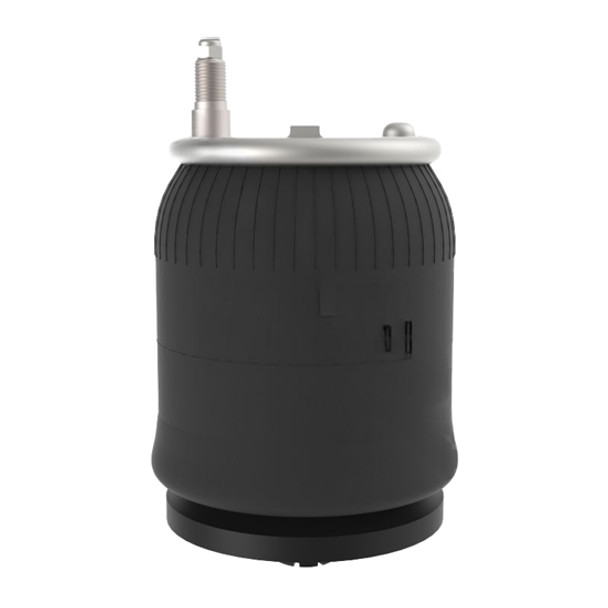

Air Spring Rolling Lobe For BlueBird 10K, Mack-Volvo 12-12.5K & Spartan 10.5-12K Suspension
- Air Spring
- Continental Brand
- Rolling Lobe
- Load At 80 PSI - 2900 Lbs
- Load At 100 PSI - 3600 Lbs
- Natural Frequency 81 CPM (Cycles Per Minute)
- Includes:
- (1) Top Plate Holes
- (1) Bottom Plate Holes
- Bumper
- 1/4 Inch Ptc Air In Fitting
- Welded Guides For Air Spring Top Bracket Positioning
- Uses A Pnf107 Nut And A Fsw410 Washer
- Resistant To Oil, Lubricants, And Adverse Weather Conditions
- Plastic Bottom Base
- Metal Top Bead Plate
- 8 Inch Design Height
- Top Plate - 6.31 Inch Outer Diameter
- Bottom Plate - 6.50 Inch Outer Diameter
- 5.10 Inch Minumum Height
- 14.70 Inch Maximum Height
- 9.10 Inch Maximum Diameter
- Sold Individually
- Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase
- This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
- Cross Ref Numbers 9912, 69915, 64075002
