Description

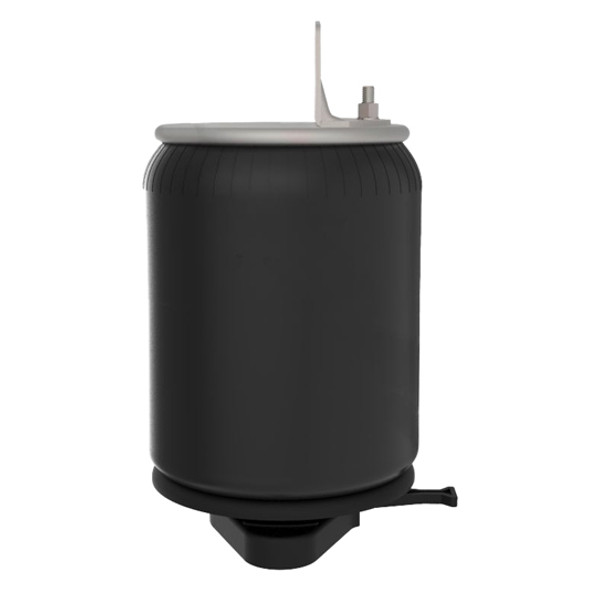

Air Spring Rolling Lobe Includes Top Plate Brackets With Plastic Base
- Air Spring
- Automann Phoenix Brand
- Rolling Lobe
- Load At 80 PSI - 5900 Lbs
- Load At 100 PSI - 7500 Lbs
- Natural Frequency 57 CPM (Cycles Per Minute)
- Includes:
- (2) Top Plate Holes
- (2) Bottom Plate Holes
- Mounting Brackets
- Resistant To Oil, Lubricants, And Adverse Weather Conditions
- Mounting Brackets Not Included
- Plastic Base
- 12.5 Inch Design Height
- Top Plate
- 9 Inch Outer Diameter
- 5.87 Inch Center To Center Diameter
- Bottom Plate
- 10 Inch Outer Diameter
- 6.75 Inch Center To Center Diameter
- 6.50 Inch Minimum Height
- 23.10 Inch Maximum Height
- 12.60 Inch Maximum Diameter
- Sold Individually
- Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase
- This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
- Cross Ref Numbers A3501107001. A3501107-001. 67573. 67574. 9 10-18.5 P 939. 9663. W013589663. W01-358-9663. W014559663. W01-455-9663. 1R121093. 1R12-1093. 60271001. 60271-001. 60271002. 60271-002. 60271002L. 60271-002L. 602711. 602712. 60271-2. 3626569C91. 57Ql57M. 20755320
