Description

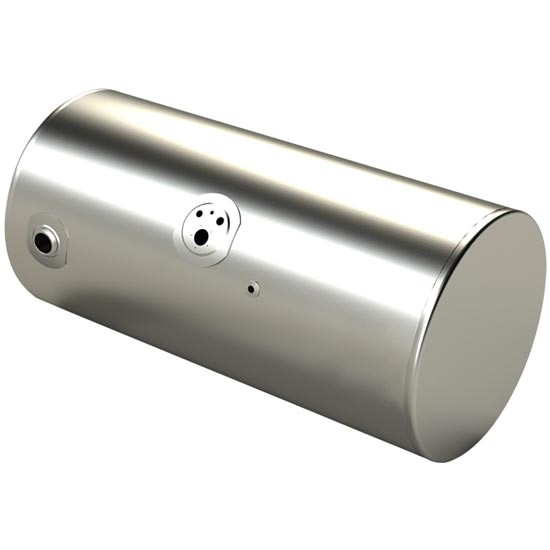

Passenger Side 80 GAL Fuel- Rear Fill/ 40 GAL Hydraulic- Front Fill- 24.5 X 62 Inch Aluminum Split Tank By BESTfit
Elevate your equipment with our Aluminum Split Tank ? an aftermarket replacement part, not OEM ? featuring precision engineering. This tank, with a 24.5-inch Diameter and Passenger Side placement, is designed for optimal fluid management. The split 120 Gallon Capacity is intelligently distributed for Fuel ? 77 Gallons at 95% with Rear Fill, and Hydraulic Oil ? 38 Gallons at 95% with Front Fill. The Fuel Section showcases meticulous measurements from the Rear Weld Seam, including a 4.00-inch Fuel Fill-Inlet, a 30.00-inch New Style Manifold with Sender Hole and Tubes, and a 0.500 Inch NPT Vent Hole at 34.00 inches. The Hydraulic Oil Section includes key features like a 10.00-inch Oil Fill-Inlet, a 0.500 Inch NPT Vent Hole at 5.00 inches, a 1.250 Inch NPT Suction Line at 7.50 inches, and a 1.250 Inch NPT Return Line at 12.50 inches. Complete with a front Sight Gauge, this tank is a precision-engineered dual-function solution for efficient fluid management.
* High Quality Split Tank
* 11 Gauge Aluminum
* Dimensions:
- 24.5 Diameter
- 62 Inches Overall Length
* Passenger Side
* Split 120 Gallon Capacity
- Fuel - 77 Gallons at 95% - Rear Fill
- Hydraulic Oil - 38 Gallons at 95% - Front Fill
* Measurements From Rear Weld Seam For Fuel Section
* Fuel Fill-Inlet 4.00 Inches
* New Style Manifold With Sender Hole And Tubes 30.00 Inches
* Vent Hole 0.500 Inch NPT At 34.00 Inches
* Oil Fill-Inlet 10.00 Inches
* Vent Hole 0.500 Inch NPT At 5.00 Inches
* Suction Line On Bottom Of Tank 1.250 Inch NPT At 7.50 Inches
* Return Line On Bottom Of Tank 1.250 Inch NPT At 12.50 Inches
* Has Sight Gauge On Front If Tank
* Welded Seams To Prevent Leakage
* CNC Laser Technology For Precision Cuts
* Sold Individually
* Warranty On Split Tanks Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
