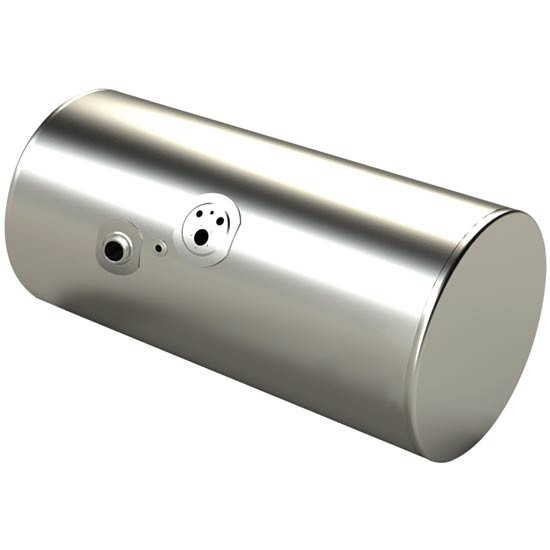

BESTfit 120 Gallon Front Fill Fuel Tank 24.5 X 60 Inch For Kenworth Center Manifold

This replacement aluminum tank is designed specifically for 2008 and newer Kenworth trucks, offering a U.S. gallon capacity of 120. It features a diameter of 24.5 inches and a seam-to-seam length of 58 inches, with an overall length of 60 inches. The filler neck is located for front filling, positioned 21.00 inches from the front weld seam and rising 38.62 inches above the horizontal weld seam at the back of the tank. The manifold, equipped with a sending unit hole, sits 29.00 inches from the rear weld seam, standing 28.62 inches above the horizontal weld seam at the back. Drains or crossovers are positioned 29.00 inches from the front weld seam, descending 3.75 inches below the horizontal weld seam at the back. Caps and fittings are sold separately, and the tank includes removable pickup and return tubes that must be cut to length. It is sold individually and proudly made in North America. It's crucial to verify manifold style, dimensions, filler, and fittings for compatibility with your vehicle before purchasing, as there may be more than one option available for your year, make, and model. This is an aftermarket replacement part, not OEM.

- For 2008 And Newer Kenworths
- Gallons U.S. - 120
- Diameter - 24.5 Inches
- Length Seam To Seam - 58 Inches
- Length Over All - 60 Inches
- Filler Neck - Front Fill
  - 21.00 Inches From Front Weld Seam
  - 38.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Manifold With Sending Unit Hole
  - 29.00 Inches From Rear Weld Seam
  - 28.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Drains Or Cross Overs
  - 29.00 Inches From Front Weld Seam
  - 3.75 Inches Below Horizontal Weld Seam - Back Of Tank
- Caps And Fittings Sold Separately, Not Included With Tank
- Removable Pickup And Return Tubes Included With Tank
- Pickup And Return Tube Must Be Cut To Length
- Sold Individually
- Made In North America

Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model

Aftermarket Replacement Part (Not OEM)
