Description

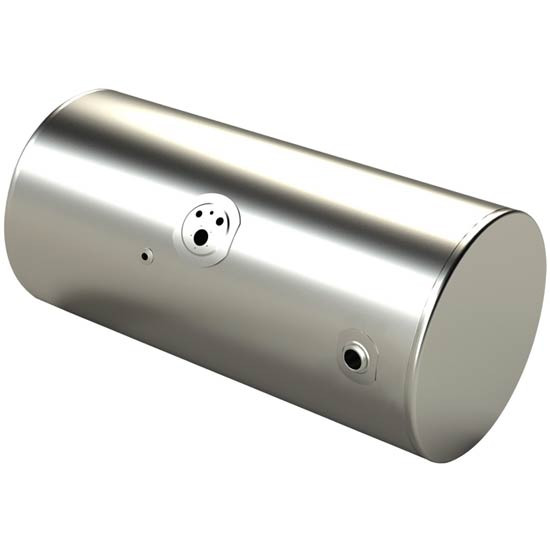

This aluminum replacement tank is tailored for 2008 and newer Kenworth trucks, offering a U.S. gallon capacity of 120. It boasts a diameter of 24.5 inches and a seam-to-seam length of 60 inches, with an overall length of 62 inches. The filler neck is positioned for rear filling, located 4.00 inches from the rear weld seam and rising 38.62 inches above the horizontal weld seam at the back of the tank. The manifold, equipped with a sending unit hole, sits 31.00 inches from the front weld seam, standing 30.62 inches above the horizontal weld seam at the back. Drains or crossovers are positioned 30.00 inches from the front weld seam, descending 3.75 inches below the horizontal weld seam at the back. Caps and fittings are available separately. Additionally, removable pickup and return tubes are included with the tank, requiring cutting to length. Sold individually and proudly made in North America, it's essential to verify manifold style, dimensions, filler, and fittings for compatibility with your vehicle before purchase, as there may be more than one option available for your year, make, and model. This is an aftermarket replacement part, not OEM.
- Aluminum Replacement Tank- For 2008 And Newer Kenworth
- Gallons U.S. - 120
- Diameter - 24.5 Inches
- Length Seam To Seam - 60 Inches
- Length Over All - 62 Inches
- Filler Neck - Rear Fill
- 4.00 Inches From Rear Weld Seam
- 38.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Manifold With Sending Unit Hole
- 31.00 Inches From Front Weld Seam
- 30.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Drains Or Cross Overs
- 30.00 Inches From Front Weld Seam
- 3.75 Inches Below Horizontal Weld Seam - Back Of Tank
- Caps And Fittings Sold Separately, Not Included With Tank
- Removable Pickup And Return Tubes Included With Tank
- Pickup And Return Tube Must Be Cut To Length
- Sold Individually
- Made In North America
Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model
Aftermarket Replacement Part (Not OEM)
Fitment
* Fits Kenworth T800 2008 thru 2016
* Fits Kenworth T800 Curved Glass 2008 thru 2016
* Fits Kenworth T880 2014 thru 2017
* Fits Kenworth W900B 1983 thru 2016
* Fits Kenworth W900B Aerocab 1994 thru 2016
* Fits Kenworth W900L 1990 thru 2016
* Fits Kenworth W900L Aerocab 1994 thru 2016
BESTfit 24.5 Inch 120 Gallon Fuel Tank With Pickup Tube Fits Kenworth
* High Quality Fuel Tank* Made Of Aluminum
* 24.5 Inch Diameter
* 62 Inch Overall Length
* 60 Inch Seam to Seam
* Driver Side
* 120 Gallon
* Rear Fill Center Manifold For Fittings
* Pick-Up And Return Tubes Included
* DOT Compliant
* Sold Individually
* Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase
** Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model **
*** High Quality Aftermarket Replacement Part (Not OEM)***
BESTfit 24.5 Inch 120 Gallon Fuel Tank With Pickup Tube Fits Kenworth
* High Quality Fuel Tank* Made Of Aluminum
* 24.5 Inch Diameter
* 62 Inch Overall
* 60 Inch Seam to Seam
* Passenger Side
* 120 Gallon
* Rear Fill Center
* Pick-Up And Return Tubes Included
* DOT Compliant
* Sold Individually
* Warranty On Fuel Tank Against Defects In Workmanship & Material From Date Of Purchase
** Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model **
*** High Quality Aftermarket Replacement Part (Not OEM)***
Additional Information
Capacity: |
120 Gallons |
Position: |
Rear Fill |
Diameter Options: |
24 1/2 Inch |
Product Type: |
Fuel Tanks |
Material Options: |
Aluminum |
Truck Class: |
Heavy Duty |
Length Options: |
60 Inch |
Shape Options: |
Cylindrical |
Make: |
Kenworth |
