BESTfit 100 Gallon Rear Fill Fuel Tank 24.5 X 50 Inch For Kenworth Center Manifold 2008 -Current

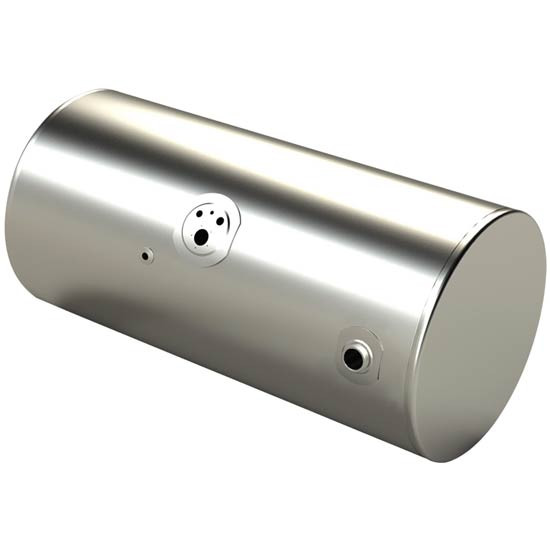

This aluminum replacement tank is designed for 2008 and newer Kenworths, boasting a U.S. gallon capacity of 100. It features a diameter of 24.5 inches and a seam-to-seam length of 48 inches, with an overall length of 50 inches. Positioned for rear fill, the filler neck is located 4.00 inches from the rear weld seam, standing 38.62 inches above the horizontal weld seam at the back of the tank. The manifold, including a sending unit hole, is situated 24.00 inches from the front weld seam, positioned 30.62 inches above the horizontal weld seam at the back of the tank. Drains or crossovers are also located 24.00 inches from the front weld seam, resting 3.75 inches below the horizontal weld seam at the back of the tank. Caps and fittings are sold separately, with removable pickup and return tubes included, requiring cutting to length. The tank is sold individually and proudly made in North America. Please verify manifold style, dimensions, filler, and fittings for sizes and locations before purchasing, as there may be more than one option for your year, make, and model. This is an aftermarket replacement part, not OEM.

- Aluminum Replacement Tank
- For 2008 And Newer Kenworths
- Gallons U.S. - 100
- Diameter - 24.5 Inches
- Length Seam To Seam - 48 Inches
- Length Over All - 50 Inches
- Filler Neck - Rear Fill
  - 4.00 Inches From Rear Weld Seam
  - 38.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Manifold With Sending Unit Hole
  - 24.00 Inches From Front Weld Seam
  - 30.62 Inches Above Horizontal Weld Seam - Back Of Tank
- Drains Or Cross Overs
  - 24.00 Inches From Front Weld Seam
  - 3.75 Inches Below Horizontal Weld Seam - Back Of Tank
- Caps And Fittings Sold Separately, Not Included With Tank
- Removeable Pickup And Return Tubes Included With Tank
- Pickup And Return Tube Must Be Cut To Length
- Sold Individually
- Made In North America

Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model

Aftermarket Replacement Part (Not OEM)
