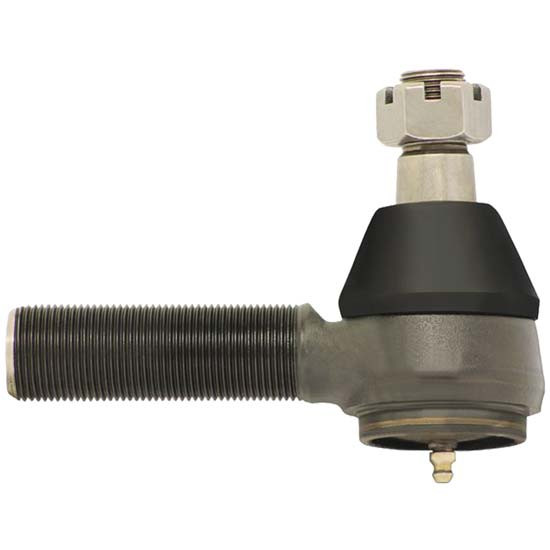

5 Inch Tie Rod End Type 1, 5. 1-1/4 Od Passenger Side For International S Series

International S Series 5.50 Inch Center To End Tie Rod End W/ 1-1/4 Inch Rod OD

- Tie Rod End
- 1.25 Inch-12Rh X 5.5 Inch C To End
- Taper Length 1.08 Inch
- Max Taper 1.102 Inch
- Min Taper .967 Inch
- 7/8 Inch14 Slotted Nut
- 1-1/4 Inch Rod OD
- 5.50 Inch Center To End
- 2.402 Inch Height Of Taper
- Taper Minor Diameter- 0.967 Inch
- Taper Major Diameter- 1.102 Inch
- Taper Length- 1.080 Inch
- Stud Thread- 7/8 Inch- 14
- Type- 1
- Thread Pitch And Direction- 12 (Right Hand)
- Made In USA
- Sold Individually

- Aftermarket Replacement Part (Not OEM)

- Replaces OE Numbers 486807C91, R230051, L24Sv5700A12, And L24Sv8334A14

- This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
