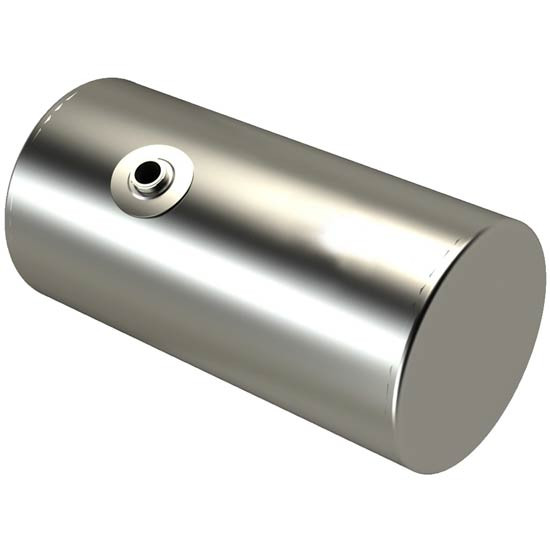

BESTfit 150 Gallon Front Fill Fuel Tank 26 X 69.75 Inch For Volvo

Upgrade your 2003 and older Volvo with our aluminum replacement tank, featuring a generous 150-gallon capacity! Measuring 26 inches in diameter and 67.75 inches seam to seam, this tank ensures ample fuel storage. Its front fill filler neck is conveniently located 14.50 inches from the front weld seam and 15.50 inches above the horizontal weld seam. The sending unit hole and vent hole are also positioned at the same distance from the front weld seam, 10.25 inches and 6.50 inches above the horizontal weld seam, respectively. The pickup port is situated 16.50 inches from the rear weld seam and 9.75 inches below the horizontal weld seam. Drains or crossovers are placed 12.50 inches from the front weld seam and 30.25 inches below the horizontal weld seam. Please note that caps and fittings are sold separately. This aftermarket replacement part is sold individually and made in North America. Ensure compatibility with your vehicle's specifications before purchasing.

- Aluminum Replacement Tank
- For 2003 And Older Volvos
- Gallons U.S. - 150
- Diameter - 26 Inches
- Length Seam To Seam - 67.75 Inches
- Length Over All - 69.75 Inches
- Filler Neck - Front Fill
  - 14.50 Inches From Front Weld Seam
  - 15.50 Inches Above Horizontal Weld Seam
- Sending Unit Hole
  - 14.50 Inches From Front Weld Seam
  - 10.25 Inches Above Horizontal Weld Seam
- Vent Hole
  - 14.50 Inches From Front Weld Seam
  - 6.50 Inches Above Horizontal Weld Seam
- Pickup Port
  - 16.50 Inches From Rear Weld Seam
  - 9.75 Inches Below Horizontal Weld Seam
- Drains Or Cross Overs
  - 12.50 Inches From Front Weld Seam
  - 30.25 Inches Below Horizontal Weld Seam
- Caps And Fittings Sold Separately, Not Included With Tank
- Sold Individually
- Made In North America

Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model

Aftermarket Replacement Part (Not OEM)
