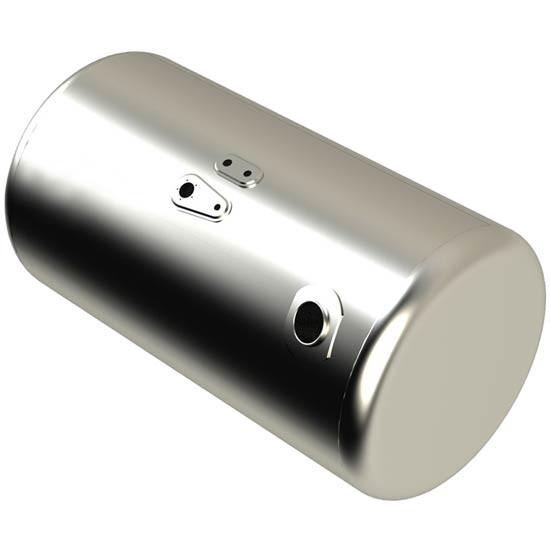

BESTfit 100 Gallon Rear Fill Fuel Tank 26 X 48 Inch For Peterbilt New Style Manifold

This replacement fuel tank, featuring a late-style manifold for 2008 and newer Peterbilts, offers a U.S. gallon capacity of 100 with a 26-inch diameter and 43-inch seam-to-seam length, measuring 48 inches overall. Positioned for rear-fill, the filler neck is located 4.50 inches from the rear weld seam, standing 19.00 inches above the horizontal weld seam at the back of the tank. Equipped with a new-style manifold boasting a sending unit hole, it's situated 21.50 inches from the rear weld seam, with pickup and return ports located at the same distance, 9.625 inches above the horizontal weld seam. Drains or crossovers are positioned 21.50 inches from the rear weld seam, resting 27.82 inches below the horizontal weld seam. Caps and fittings are available separately, as the tank is sold individually and proudly made in North America. This product comes with a warranty against defects in workmanship and material from the date of purchase. This is an aftermarket replacement part, not OEM.

- With Late Style Manifold For 2008 And Newer Peterbilts
- Gallons U.S. - 100
- Diameter - 26 Inches
- Length Seam To Seam - 43 Inches
- Length Over All - 48 Inches
- Filler Neck - Rear Fill
  - 4.50 Inches From Rear Weld Seam
  - 19.00 Inches Above Horizontal Weld Seam - Back Of Tank
- New Style Manifold With Sending Unit Hole
  -21.50 Inches From Rear Weld Seam
  - 13.00 Inches Above Horizontal Weld Seam - Back Of Tank
- Pickup And Return Ports - Tubes Built In To Tank
  - 21.50 Inches From Rear Weld Seam
  - 9.625 Inches Above Horizontal Weld Seam - Back Of Tank
- Drains Or Cross Overs
  - 21.50 Inches From Rear Weld Seam
  - 27.82 Inches Below Horizontal Weld Seam - Back Of Tank
- Caps And Fittings Sold Separately, Not Included With Tank
- Sold Individually
- Made In North America
- Warranty On Fuel Tank Against Defects In Workmanship & Material From Date Of Purchase

Aftermarket Replacement Part (Not OEM)
